BASIC HEATING ELEMENT-Water Heating Controller
283.5
/Box/ QTY in Box: 20 Pcs
Available

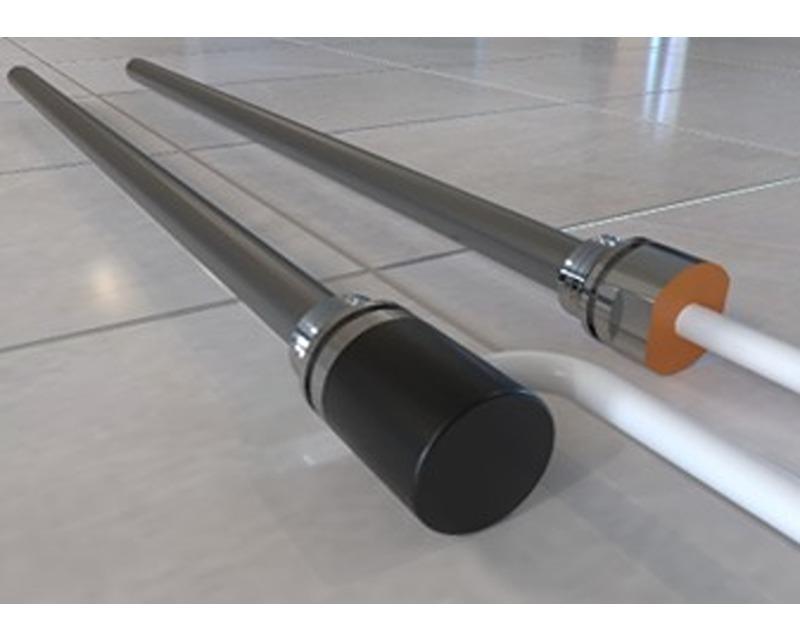

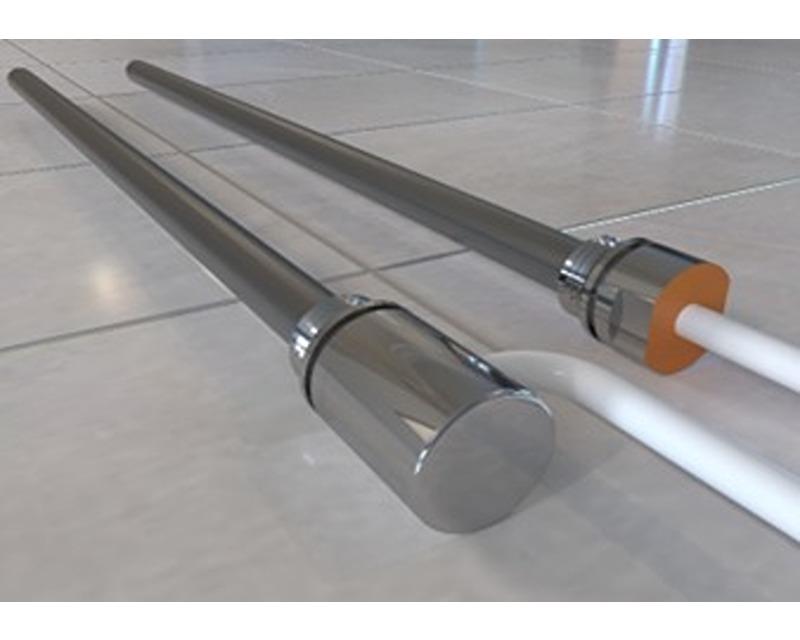

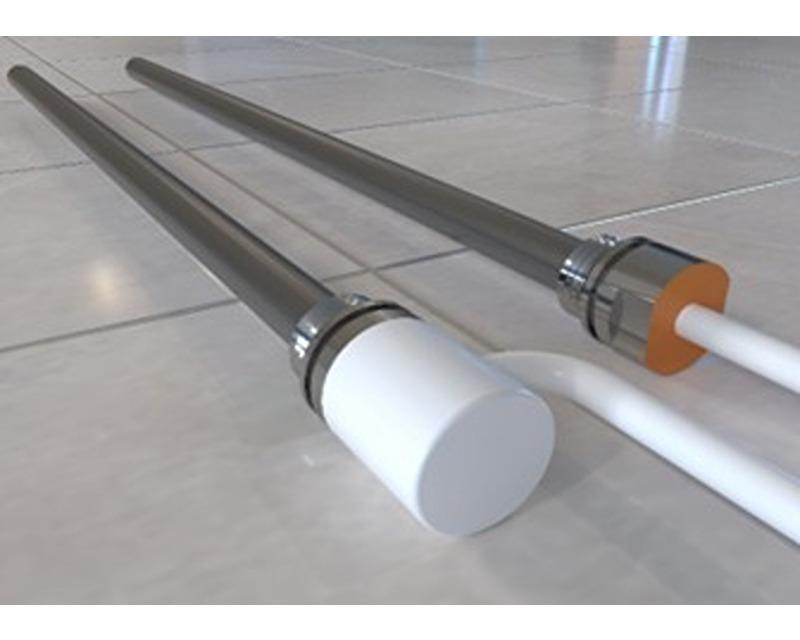

BASIC HEATING ELEMENT FOR ELECTRIC
TOWEL RAIL
The Basic Heating Element is a water heating resistor designed
for towel rails. It is easy to use and does not include any
electronic control circuits.
To operate, simply plug it into a power outlet. Unplug it to
turn it off.
Available in a wide range of power options, from 100W to
1000W, to meet your specific heating requirements.
Constructed with durable materials for long-lasting
performance, the heating element is designed to distribute
heat evenly across the towel rail.
Technical specifications:
Cover Information:
Height: 34 mm
Width:30 mm
Depth:45 mm
Color:White - Black - Chrome - Brushed Brass - Nickel - Bronze - Gun Metal Grey
Power supply:
Operating Voltage:230V 50Hz
Power Rating:1000W, resistive load
Power cord:1400 mm
Manual (No electronic control system required). Simply plug in to start heating and unplug to stop.
Protection Rating:IP44 - IP68
Class:Class I & Class II
Operating temperature : +7°C to +35°C
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:EN 61000-4-2 :2009 - EN 61000-4-3 :2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5 : 2014 - EN 61000-4-6 : 2014 - EN 61000-4-11 2004 - N 61000-4-13 : 2002 + A1 + A2
LVD:IEC 60335-1:2020 ; EN 60335-1:2012 ; EN 62233:2008
RoHS:EN IEC 50581
Manufacturing:ISO 9001:2027
