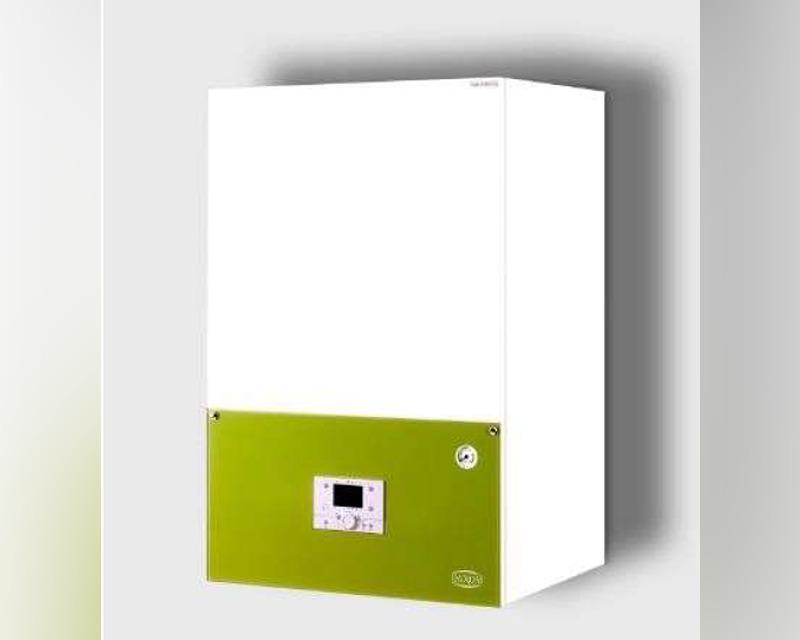

DAXOM/NAVIDENS CONDENSNG GAS BOILER 80KW-145KW
2025
/pcs
Available

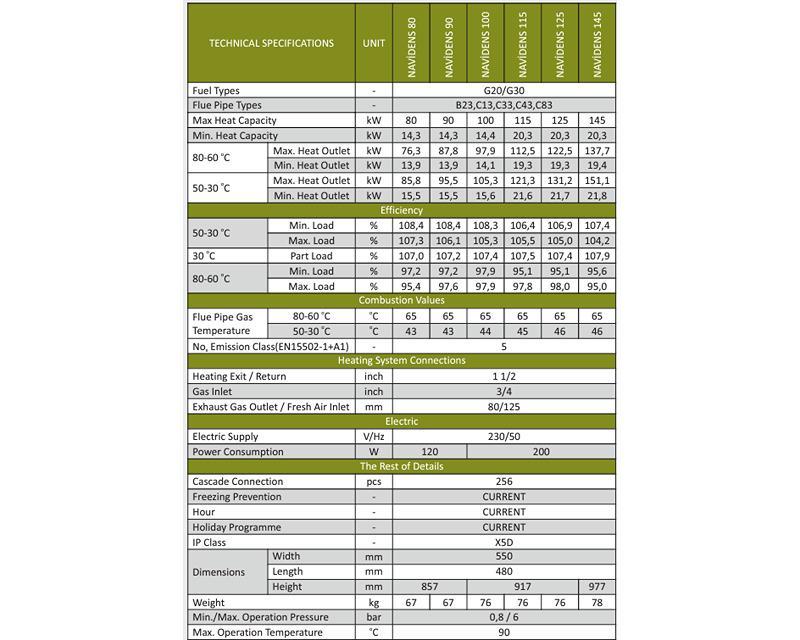

MODEL CAPACITY DIMENSIONS WEIGHT NAVIDENS80 80 kW 857*440*480 67 KG NAVIDENS90 90 kW 857*440*480 67 KG NAVIDENS100 100 kW 917*440*480 76 KG NAVIDENS115 115 kW 917*440*480 76 KG NAVIDENS125 125 kW 917*440*480 76 KG NAVIDENS145 145 kW 917*440*480 78 KG ,DIMENSIONS : 857*440*481
SKU: EWA-TR-DAX-67-2WALL MOUNTED CONDENSING GAS BOILERS
– Efficiency of DAXOM / Navidens condensing boilers are %108, 1.
– Navidens condensing boilers that are durable 6 bar operation pressure through aluminum heat exchanger are ready for cascade connections including control panel.
– Pipes of Navidens condensing boilers are suitable for every kind of pipe system.
– Both 80/125 (100/150) conventional pipe and 80 / 80 (100/100) separately pipe connectors are possible.
– it provides big advantage for external boiler and heatexchnager systems with integrated pump that is found inside boilers.
– Cascade module is inside boilers at Navidens condensing boilers.
– Navidens condensing boilers have got efficiency according to EEC 92/42 European Directive.
Al-Mg-Si Cast Heat Exchanger High Combustion Efficiency with Premix Stainless Steel Burner and Fan with Modulation Up to %108,4 Efficiency Value
Up to 256 Boilers Cascade Connection
Wide Modulation Range
Suitable Solution for High-Rise Buildings With 6 Bar Operation Pressure
High Combustion Efficiency, Low Emission Values with PWM Control Fan
Silent Operation Equal Ageing with Specification of Sequential Operation for Cascade Systems
Internal Flue Pipe Clack ·
Mikroprocessor Boiler Control Pannel with Digital LCD Display and Menu Control
Integrated Cascade Module Display and Interference Boiler Data from Computer with Siemens Control Pannel Using Both NG and LPG
Boiler Protection with Overtemperature Safety Thermostad
Freezing Prevention Space Saving with Compact Design Setting Heatcycle Operation Temperature Between 20°C and 80°C and Domestic Hot Water Temperature Between 10°C and 65°C
Automatic Operation According to Exterior Temperature ·
Using a Hermetic or Concentric Pipe Set Coupled with a Solar Energy System
Pool Heating Function
Easy Installation, Use and Maintenance
– Efficiency of DAXOM / Navidens condensing boilers are %108, 1.
– Navidens condensing boilers that are durable 6 bar operation pressure through aluminum heat exchanger are ready for cascade connections including control panel.
– Pipes of Navidens condensing boilers are suitable for every kind of pipe system.
– Both 80/125 (100/150) conventional pipe and 80 / 80 (100/100) separately pipe connectors are possible.
– it provides big advantage for external boiler and heatexchnager systems with integrated pump that is found inside boilers.
– Cascade module is inside boilers at Navidens condensing boilers.
– Navidens condensing boilers have got efficiency according to EEC 92/42 European Directive.
Al-Mg-Si Cast Heat Exchanger High Combustion Efficiency with Premix Stainless Steel Burner and Fan with Modulation Up to %108,4 Efficiency Value
Up to 256 Boilers Cascade Connection
Wide Modulation Range
Suitable Solution for High-Rise Buildings With 6 Bar Operation Pressure
High Combustion Efficiency, Low Emission Values with PWM Control Fan
Silent Operation Equal Ageing with Specification of Sequential Operation for Cascade Systems
Internal Flue Pipe Clack ·
Mikroprocessor Boiler Control Pannel with Digital LCD Display and Menu Control
Integrated Cascade Module Display and Interference Boiler Data from Computer with Siemens Control Pannel Using Both NG and LPG
Boiler Protection with Overtemperature Safety Thermostad
Freezing Prevention Space Saving with Compact Design Setting Heatcycle Operation Temperature Between 20°C and 80°C and Domestic Hot Water Temperature Between 10°C and 65°C
Automatic Operation According to Exterior Temperature ·
Using a Hermetic or Concentric Pipe Set Coupled with a Solar Energy System
Pool Heating Function
Easy Installation, Use and Maintenance
