SHADOW CNC NESTING LINE
The manufacturing time for the machines is 3-4 months.
The machines come with a 2-year warranty.

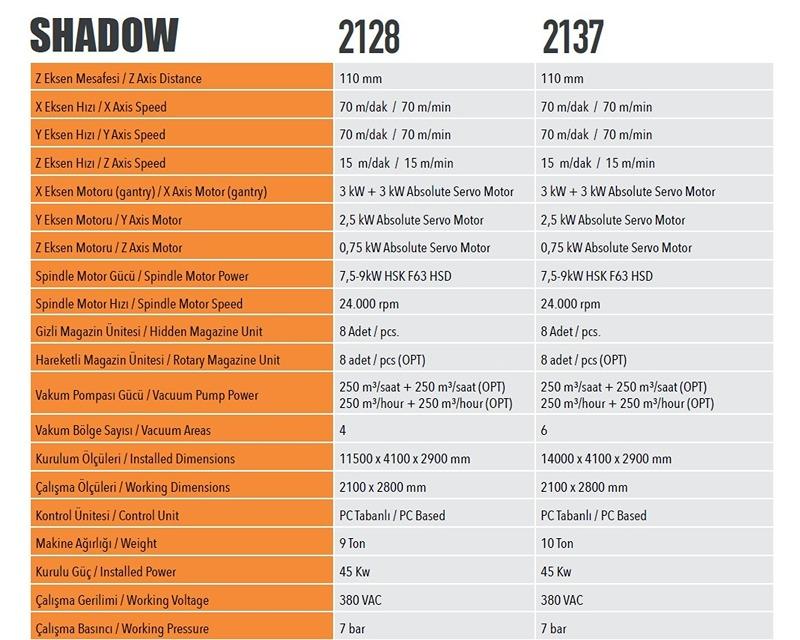

The dimensions of 2128 are 210*280, while those of 2137 are 210*370.

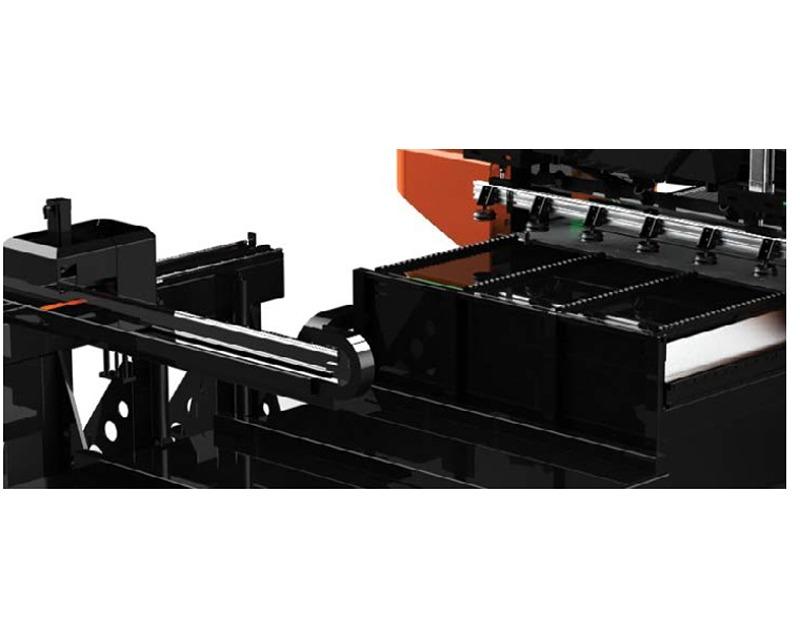

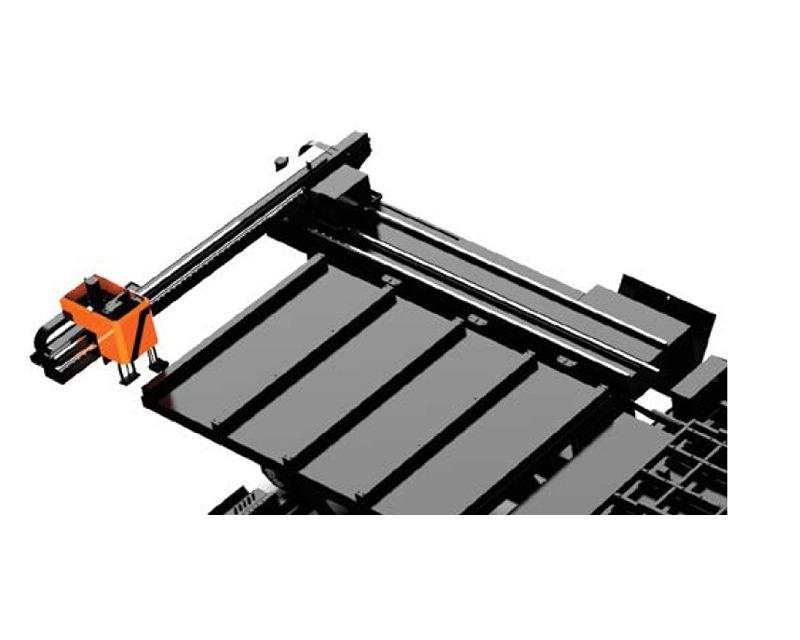

LOADING UNIT:The loading unit automatically carries the plates
from lift to the work table. It provides efficient and
fast production flow.

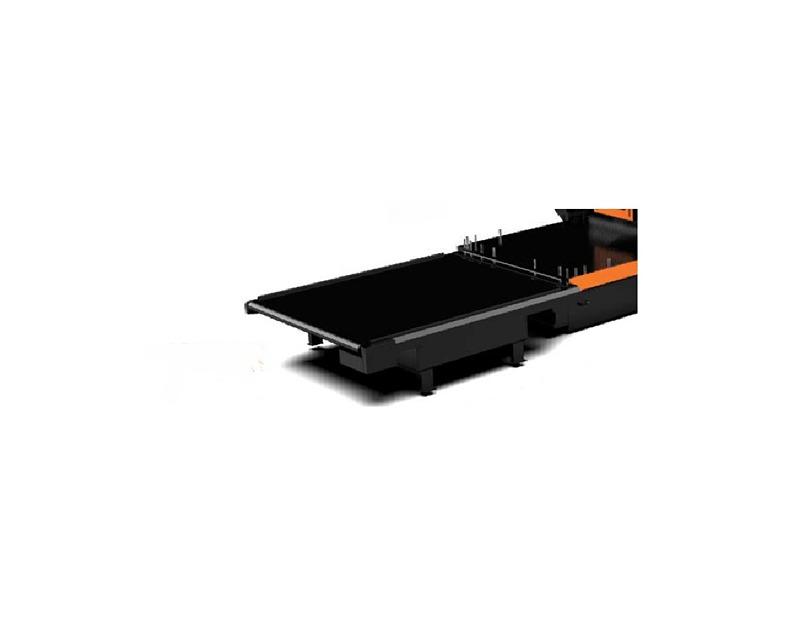

UNLOADING & CLEANING UNIT:It cleans the table by removing the processed workpiece. It makes the unit ready for the next operation.
LIFTING UNIT:The lifting unit keeps the plates to be processed in a ready position. It allows loading up to 450mm height.

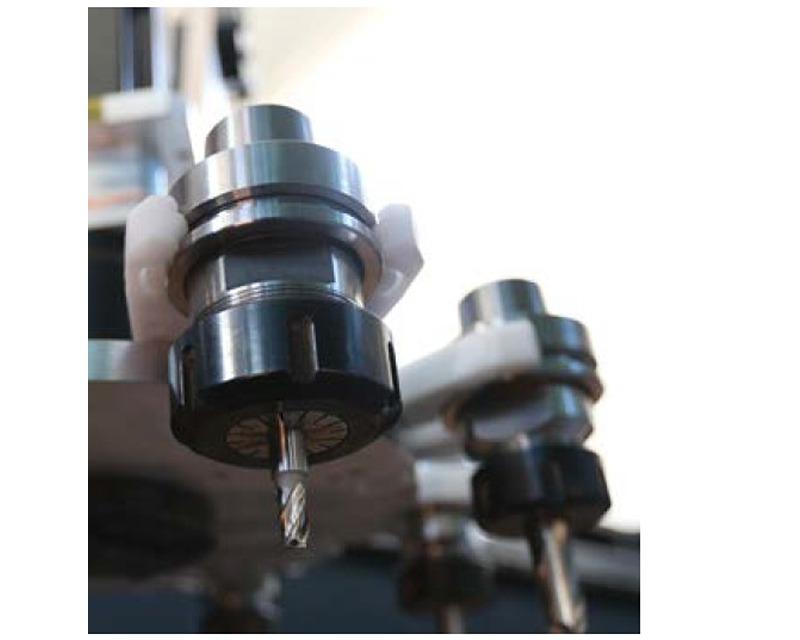

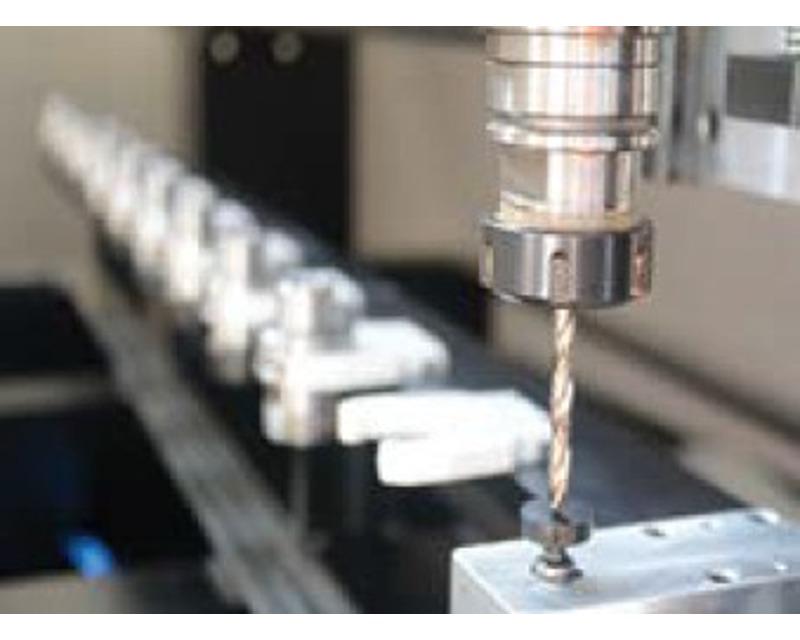

ROTARY MAGAZINE UNIT:Save time with easy and fast tool changing with the 8 PCS tool capacity rotary magazine unit.

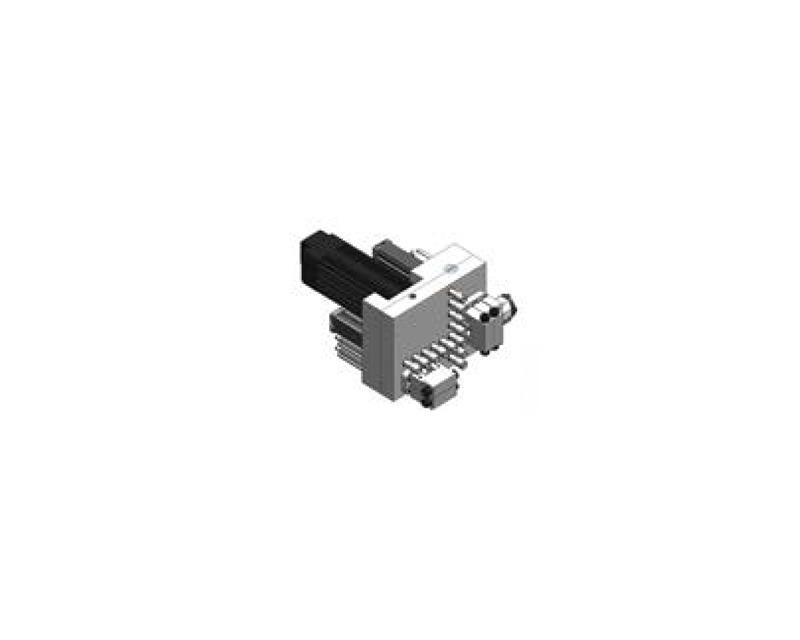

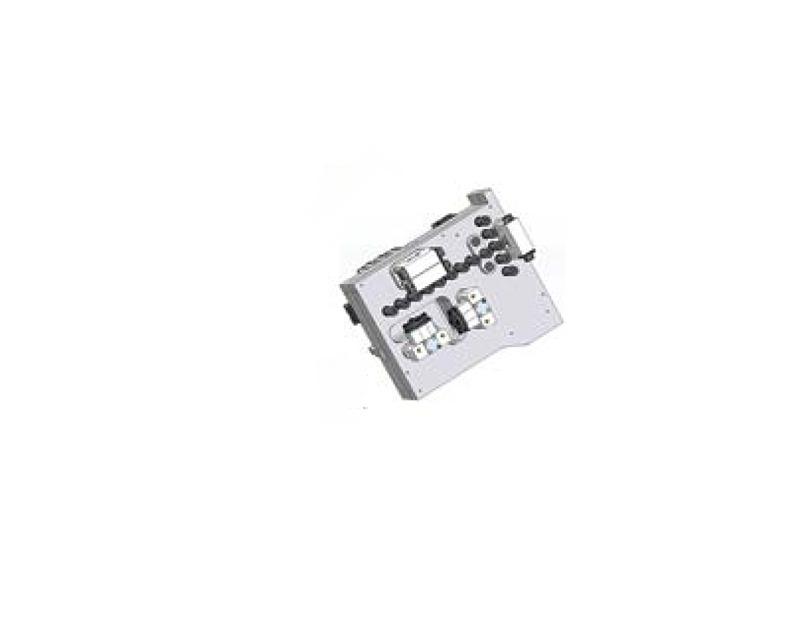

ADAPTABLE & HIGH PERFORMANCE MULTIPLE BORING UNIT:Different hole unit options can be added to the machine according to customer’s needs and different type of projects.
MANUAL LABELING SYSTEM:The system shows the label data coming from the program on the screen and provides the right labelling process by guiding the operator.

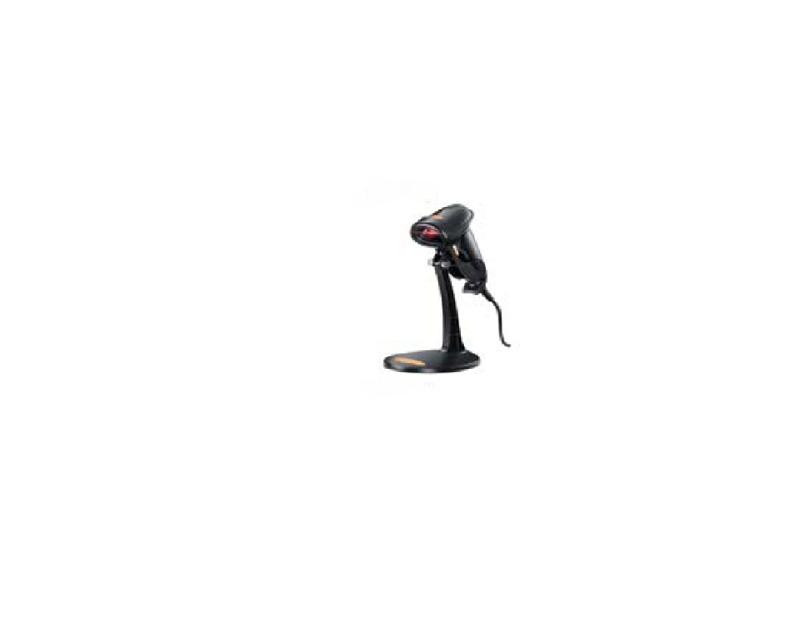

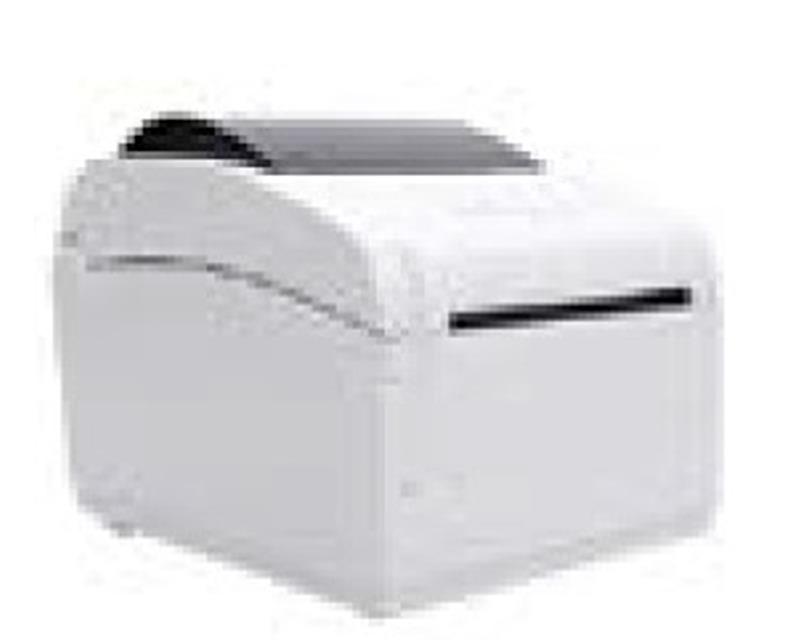

BARCODE READING AND PRINTING:Integrate your production processes with barcode reading and printing options and minimize fault ratio caused by operator.

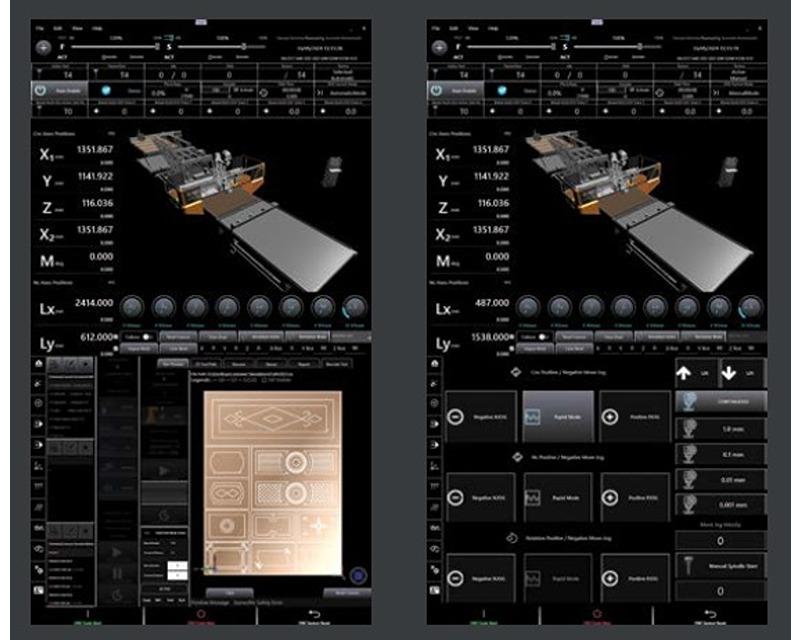

USER FRIENDLY INTERFACE:SHADOW is controlled by new generation PC-Based CNC Control Unit and 100% Oemak made interface. NumCAM 2D has written by OEMAK Engineers to provide support in entry-level jobs.
