ECO-MULTIPLE MODEL -Water Heating Controller
806.925
/Box/ QTY in Box: 20 Pcs
Mevcut
Heating output available :150, 200, 250,300, 400,500, 600, 700, 750, 800, 900,1000 Wattages
Electric supply :230-240V / 50 Hz
Casing protection mark :IP44
Towel rail connection :G 1/2" - Fast on
DIGITAL LED DISPLAY THERMOSTATIC
CONTROL UNIT FOR ELECTRIC TOWEL RAIL
Measurement and transmission of setpoint temperature and room temperature to the control unit
Temperature setting
Power On / Standby
Operating modes selection
Quick heating of your bathroom using the instant Boost
Benefits
Excellent ergonomic settings : tilted interface with large and spaced buttons.
White 7 segment LED display.
Easy to read.Control unit can be placed both on the right and the left side of the towel rail .
Display direction can be turned 180˚.
Functional Specifications.
Power On / standby :A dedicated button allows the appliance to be on standby.
Temperature setting :Preset at 20°C, adjustable from +7°C to+35°C.
Timer Function:timer can be set that allows it to run for 1-5 hours.
Safety:Built-in temperature sensor protects the device from overheating, limiting the temperature of the radiator to maximum of 70°C.

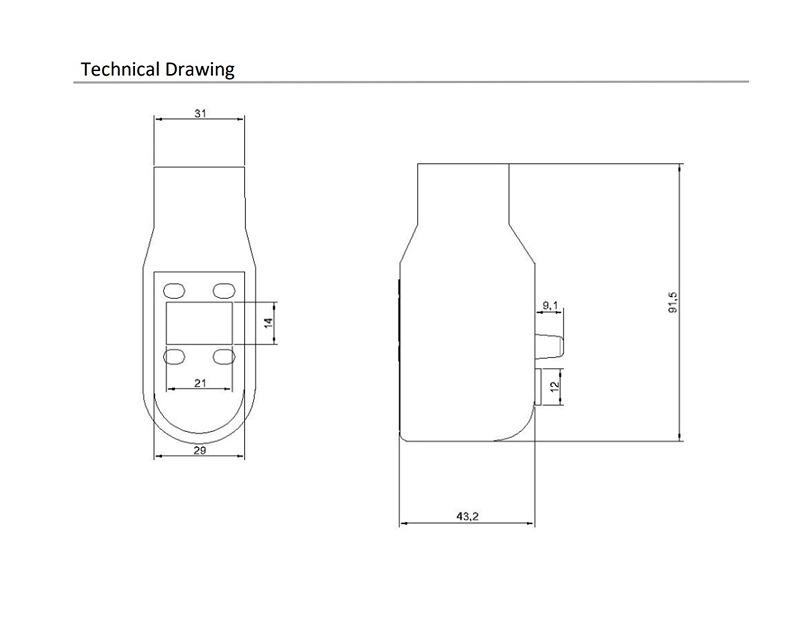

Dimensional and finish specifications:
Height 91,5 mm
Width 36,5 mm
Depth 43 mm
Color:White - Black - Chrome
Net weight:0.65 Kg (excluding cable)
Power Supply:
Operating voltage:230V 50Hz
Maximum power:1000W, resistive load
Power cord:800 mm
Control:
Control Type:Electronic PID (Proportional Integrated Derivative) temperature regulation with microprocessor
Environment:
Protection rating:IP44 - IP68
Class:Class I - Class II
Operating temperature:Adjustable from +7°C to +35°C
Storage temperature:-10°C to +70°C
Applicable directives:
EMC:2014/35/EU
LVD:2014/35/EU
RoHS:2014/35/EU
Applicable standards:
EMC:ΕΝ 61000-4-2:2009 - EN 61000-4-3:2006 + A1 + A2 - EN 61000-4-4 :2012 - EN 61000-4-5: 2014 - EN 61000-4-6:2014 - EN 61000-4-11 2004 - N 61000-4-13: 2002 + A1 + A2
LVD:IEC 60335-1:2020; EN 60335-1:2012; EN 62233:2008
RoHS:EN 50581
Manufacturing:ISO 9001:2027
